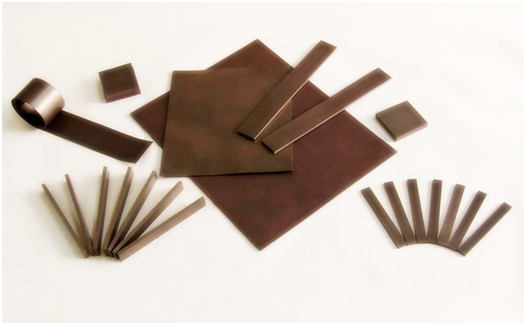

Bgrimm magnet engaged in the research and development of flexible rare earth bonded magnet for a long time, the main products including adhesive magnetic sheet/stripe, adhesive magnet roll, flexible iron plate sheet/roll, isotropic extrusion magnet.
Bgrimm magnet developed a new product flexible rare earth bonded magnets at present, which has a higher magnetic performance than common rubber magnet, as well as excellent reliability, degree of finish and resistance to corrosion or oxidation helping it to respond the trend in development of lightweight, portable and miniaturized electronic equipment.
|
P/N |
Magnetic Properties |
Physical Properties | |||||||
|
Br |
Hcb |
Hcj |
(BH)max |
Tensile Strength |
Elongation |
Hardnes |
Temperature |
Density | |
|
mT |
KA/m |
KA/m |
KJ/m3 |
Mpa |
% |
SHD |
℃ |
g/cm3 | |
|
BMZN1 |
260-280 |
184-200 |
240-360 |
12.8-16.0 |
9-15 |
50-100 |
40-40 |
-10-80 |
3.7-5.5 |
|
BMZN2 |
280-350 |
200-280 |
360-520 |
16.0-22.4 |
8-12 |
50-100 |
40-50 |
-10-80 |
3.7-5.5 |
|
BMZN3 |
350-400 |
240-280 |
480-600 |
22.4-28.0 |
6-10 |
40-80 |
40-50 |
-10-80 |
3.7-5.5 |
|
BMZN4 |
400-460 |
264-320 |
560-680 |
28.0-36.0 |
5-8 |
30-50 |
36-46 |
-10-80 |
3.7-5.5 |
|
BMZN5 |
460-500 |
296-336 |
640-744 |
36.0-40.8 |
2-6 |
15-50 |
36-46 |
-10-80 |
3.7-5.5 |
|
BMZN6 |
500-550 |
312-352 |
680-760 |
42.4-49.6 |
2-6 |
15-50 |
36-46 |
-10-80 |
3.7-5.5 |
Electromagnetic Wave Absorbers
BGRIMM has developed a series of electromagnetic wave absorbents, flexible rubber electromagnetic wave absorbers with high performance that can be widely applied in various fields, such as stealth technique, electrical communication, electromagnetic compatibility (EMC), and so on.
● Service frequency range：1~40 GHz
Absorption：-5~-40 dB
Service temperature：-40 ℃ ~ +80 ℃
◆ Powder absorbents
● BMA-PLS（1~4GHz）
● BMA-PS（2~8GHz）
● BMA-PX（8~18GHz）
● BMA-PK（18~26.5GHz）
● BMA- PQ（26.5~40GHz）

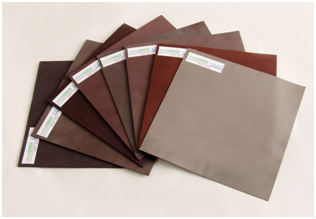

◆ Flexible rubber electromagnetic wave absorbers
|
P/N |
Service Frequency Range |
Thickness |
Density |
Absorption |
|
GHz |
mm |
g/cm3 |
dB | |
|
BMA-RS |
2~4 |
2.7 |
4.41 |
-20 |
|
BMA-RC |
4~8 |
1.8 |
4.28 |
-22 |
|
BMA-RX |
8~12 |
2 |
2.9 |
-29 |
|
BMA-RJ |
12~18 |
1.0 |
3.70 |
-29 |
|
BMA-RK |
18~26.5 |
1.1 |
3.10 |
-46 |
|
BMA-RQ |
26.5~40 |
0.6 |
3.67 |
-35 |
|
BMA-RLS |
1~4 |
2.2 |
4.77 |
-19 |
|
BMA-RSC |
2~8 |
1.6 |
4.69 |
-16 |
|
BMA-RXJ1 |
8~18 |
0.5 |
4.80 |
-7 |
|
BMA-RXJ2 |
8~18 |
1.0 |
3.90 |
-13 |
|
BMA-RXJ3 |
8~18 |
1.6 |
3.19 |
-18 |
|
BMA-RXJ4 |
8~18 |
2.0 |
2.8 |
-32 |
|
BMA-RSJ |
2~18 |
1.3 |
4.31 |
-10 |
